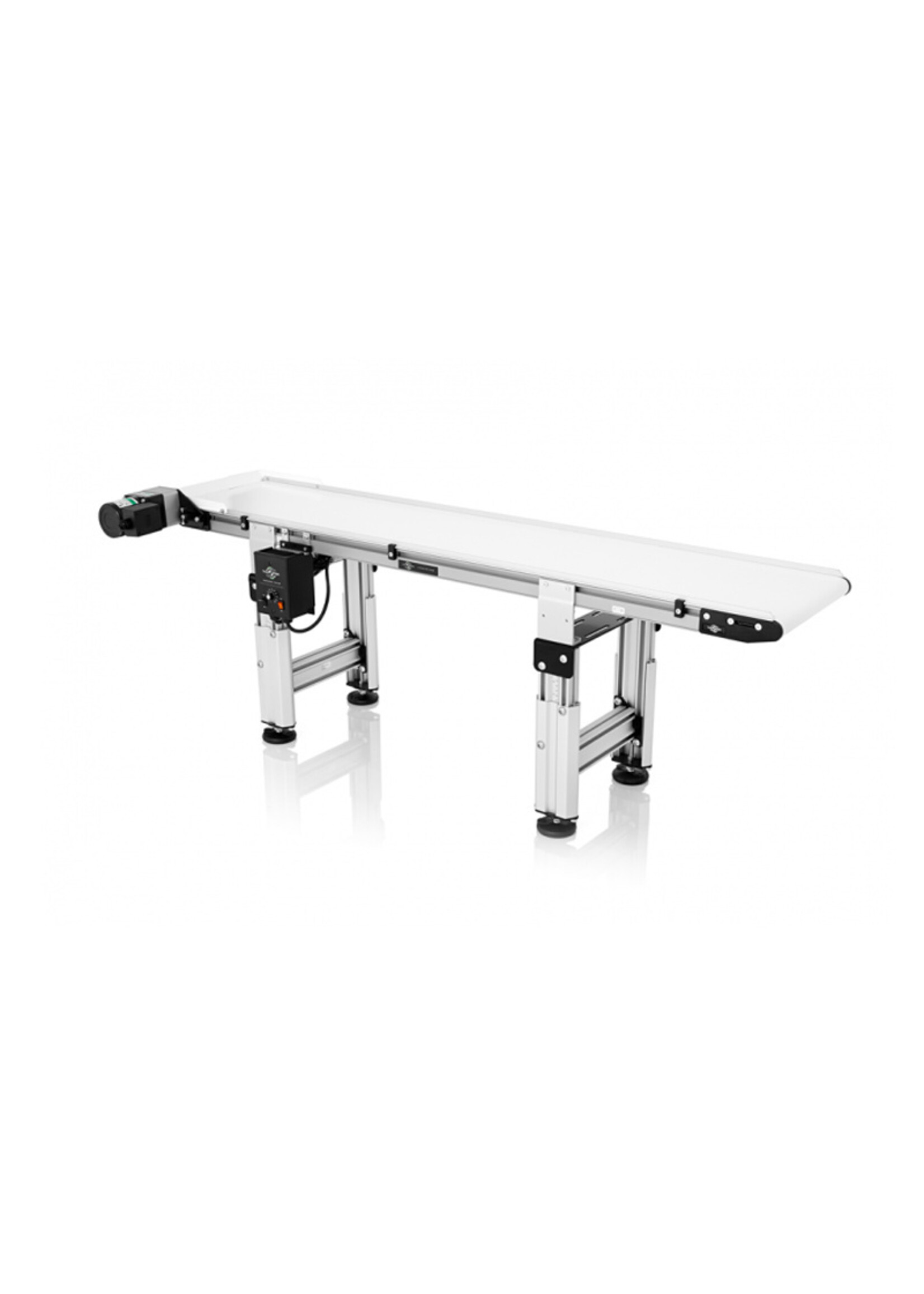

Twister QC Conveyor
The Twister Quality Control Conveyor conveyor belt stands at the end of the harvesting machine and transports the finished crop. With the adjustable speed control, this conveyor belt can be adapted to the desired production speed. The Twister Conveyors are height adjustable and fit perfectly with the Twister T2 and Twister T4.

Technical specifications

- Motor manufacturer: Oriental Motor
- Motor type: induction
- Output power: 25 W (1 / 30PS)
- Electrical voltage: 115V
- Frequency: 50/60 Hz
- Required overvoltage switch: 10 A / 120V
- Amperage: 5.2 A (when starting), 1.3 A (ongoing operation)
- Does RoHS meet the requirements? Yes
- Safety certificates: UL / CSA / CCC / EN / CE
- CE certificate: Yes, according to the EU low-voltage directive
- Overheating protection: Integrated thermal protection (automatic reset type).
- Operating temperature, open: 130 ° C ± 5 ° C, closed: 82 ° C ± 15 ° C
- Ambient temperature: 200V three-phase current: -10 ° C ~ 50 ° C (frost-free)
- Other voltages: -10 ° C ~ 40 ° C (frost-free)
- Ambient air humidity: maximum 85% without condensation
- Protection class: induction
- Conveyor belt dimensions: 152.4 x 33 x 30.5 cm
- Feed tape dimensions: 152.4 x 33 x 10.2 cm
