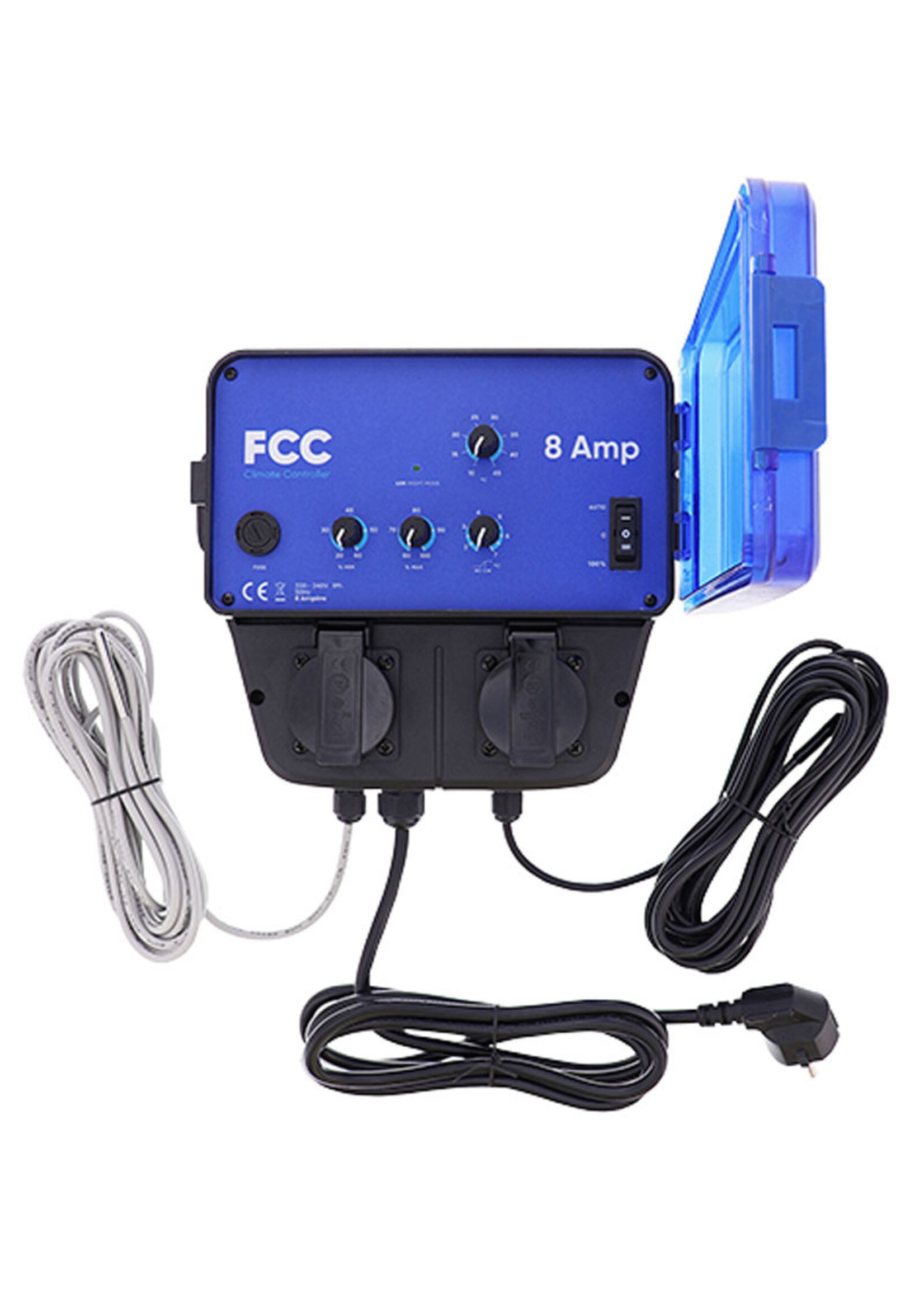

FERTRASO CLIMATE CONTROLLER 8A

The FCC is a software controlled climate controller. The FCC is suitable for one or two fans. The FCC also has an LDR (light sensor) and an NTC (temperature sensor).
The controller combines mechanical fan speed operation with the latest digital temperature measurement technology. The result is a completely silent, dual-speed fan speed controller with highly accurate temperature control.
The controller has a 5 meter long NTC temperature sensor, which allows the unit to be placed in any desired location.
The mechanical aspect guarantees robust controller with completely silent fan speed operation. The built-in temperature control software provides faster response times, lower idle speeds and improved accuracy for the very best results from this type of controller.
You can also determine the minimum speed yourself by means of the potentiometer (see user manual)

Characteristics

• Suitable for one or two fans/extractor
• Software controlled
• Minimum speed is adjustable
• 5 meters LDR (light sensor)
• 5 meters NTC (temperature sensor)
• Controls the fan speed
• Spare fuse included
• EU sockets

Technical data

• Adjustable capacity: Max. 8 Amps.
• Input: 230v-240v 1Ph
• Frequency: 50Hz
• Dynamic Range: 0.5-8 Amp
• temp. sensor: (Ntc 5 meters) 4K7 at 25C
• Light sensor: (Ldr 5 meters) 100K-10 Lux
• Bandwidth: range 1~7C
